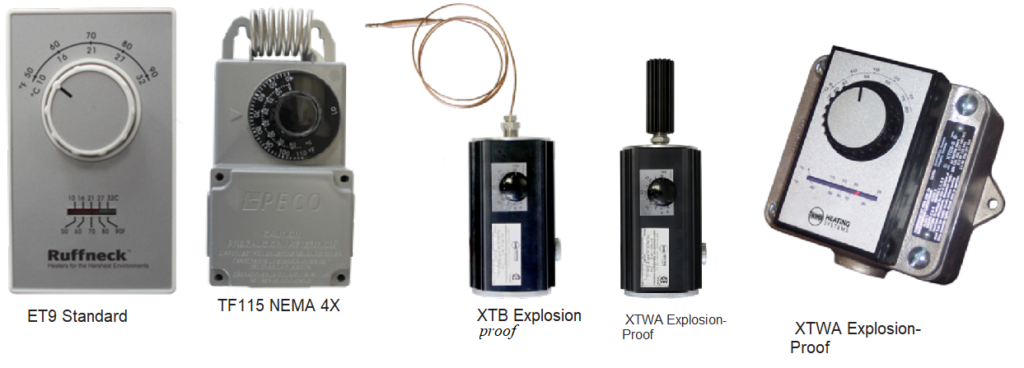

ET9 Standard Ruffneck™ Thermostat
Heavy Duty Line Voltage Thermostat
• Temperature range: 50°F to 90°F (10°C to 32°C)
• 22 amps, 277 Vac
• ¾ HP @ 125 Vac
• 1½ HP @ 250 / 277 Vac
• Single pole
• Single Throw*
• Approximate Shipping Weight: 0.6 lbs (0.28 kg)

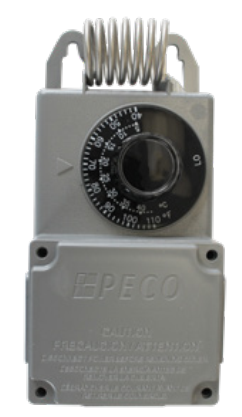

TF115 NEMA 4X Corrosion Resistant Thermostat • Temperature range: 40°F to 110°F (4.4°C to 43.3°C)
• 25 amps Res.,240 VAC: 5A @ 480 Vac
• Full load = 16 amps @ 120 Vac
12 amps @ 240 Vac
Lock Rotor = 80 amps @ 120 Vac
60 amps @ 240 Vac
• Single pole, double throw (heating or cooling applications)
• Approximate Shipping Weight: 0.69 lbs (0.31 kg)
XTB Explosion-Proof Thermostat • Temperature range: 0°F to 100°F (-18°C to 40°C)
• Class I, Division 1 & 2 Groups C & D
Class II, Division 1 & 2 Groups E, F & G
Class III, Division 1 & 2
• Remote sensing bulb with 57″ capillary length
• 15 amps Res., 600 VAC Max. – 25 amps Res., 277 Max.
• XTB04481 (Single Pole, Single Throw)*
• XTB04483 (Double Pole, Single Throw)*
• Approximate Shipping Weight: 3.8 lbs (1.7 kg)
XTWA Explosion-Proof Thermostat
• Temperature range: 0°F to 100°F (-18°C to 40°C)
• Class I, Division 1 & 2 Groups A, B, C & D
Class II, Division 1 & 2 Groups E, F & G
Class III, Division 1 & 2
• Sensing bulb in Finned Thermowell for Air Sensing
• 15 amps Res., 600 Vac Max. – 25 amps Res., 277 Max.
• XTWA04481 (Single Pole, Single Throw)*
• XTWA04483 (Double Pole, Single Throw)*
• Approximate Shipping Weight: 4.0 lbs (1.8 kg)
XTD8-S Explosion-Proof Thermostat
• Temperature range: 40°F to 80°F (5°C to 25°C)
• Class I, Division 1 & 2 Groups C & D
Class II, Division 1 & 2 Groups E, F & G
Class III, Division 1 & 2
• Feed-thru model (includes explosion-proof plug)
• ¾” – 14 NPT conduit opening (½” conduit adapter included)
• Single pole, double throw (heating or cooling applications)
• 22 amps, 277 Vac Max.
• ¾ HP @ 125 Vac
• 1½ HP @ 250/277 Vac
• Approximate Shipping Weight: 5.3 lbs (2.4 kg)
