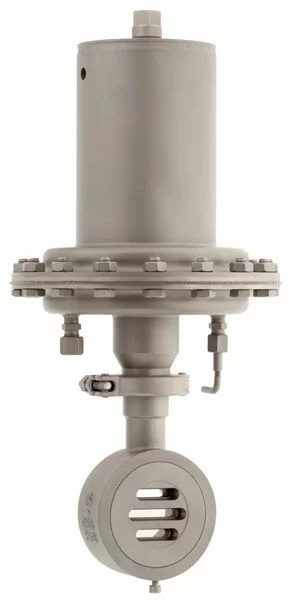

Type 8011 – sliding gate pressure regulator
GS1 series
The type 8011 pressure regulator, controlled by its own medium, with a closed spring hood, designed as a pressure reducer (back pressure regulator) or overflow (upstream pressure regulator), is used in a wide range of process control tasks. Media such as steam, liquids, gases, etc. can thus be easily controlled without auxiliary energy.
Nominal size:
DN15 – DN125
Nominal pressure:
PN 10/40
Material:
Completely stainless steel
Housing 1.4581 / 1.4408
Drive 1.4571
Diaphragm materials: CR, EPDM or FKM, optionally with PTFE foil
Temperature:
Media temperature: -30 ° C to 230 ° C
Special designs possible on request.
| connections | Wafer design |
| equipment | Closed, sealed spring hood with monitoring connection |
| Executions | Pressure range 0.3 – 1.2 barPressure range 1.0 – 2.5 barPressure range 2.0 – 5.0 barPressure range 4.0 – 10 bar |
