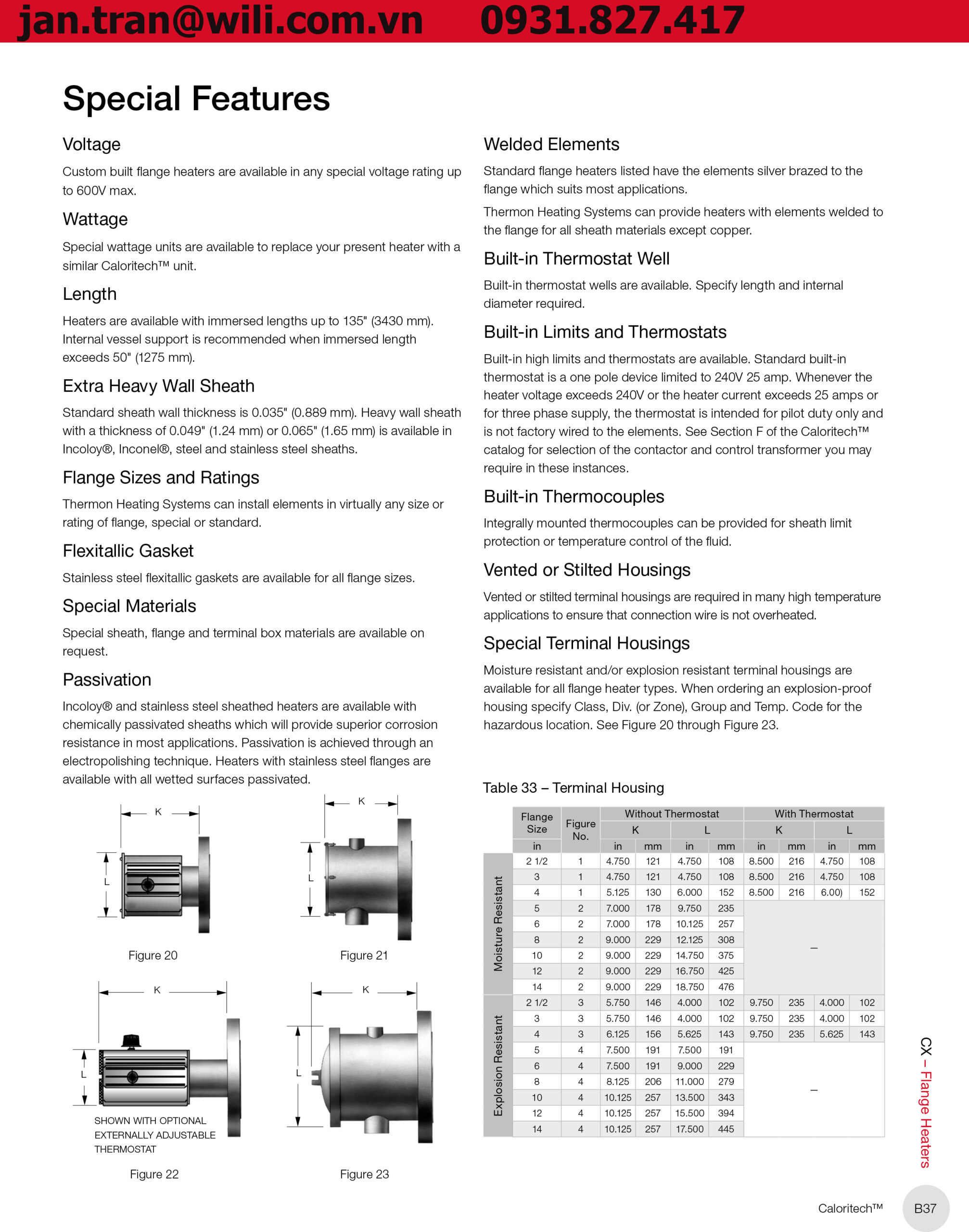

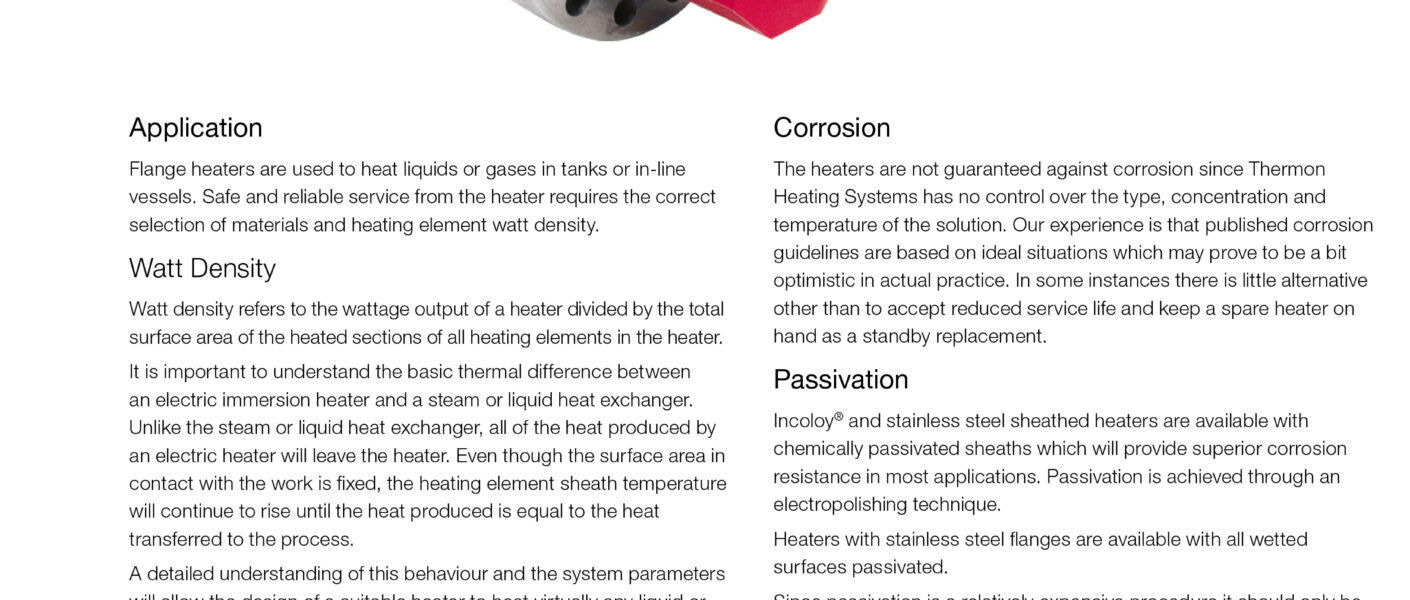

Flange Heaters

flange heater CxC CXF CXI — The Caloritech™ catalog for immersion heaters used primarily to heat liquids.

	kW	Immersion Length ‘B’		Standard Voltages 208, 240, 416,	Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)	Net Weight
		in	mm	480, 600	W/in²	W/cm²	Catalog No.	Part No.	Catalog No.	lbS	kg
High Density Copper Sheath	6.0	17.9	455	1 or 3 Phase	60	9.3	CXC306F3	TM-3-306	CXCT306F3	15.4	7
	9.0	25.8	655		55	8.5	CXC309F3	TM-3-309	CXCT309F3	15.4	7
	12.0	32.7	830		54	8.4	CXC312F3	TM-3-312	CXCT312F3	17.6	8
	15.0	39.6	1005		54	8.4	CXC315F3	TM-3-315	CXCT315F3	17.6	8
	18.0	47.4	1205		53	8.2	CXC318F3	TM-3-318	CXCT318F3	19.8	9
	18.0	25.8	655		55	8.5	CXC618F3	–	CXCT618F3	22.0	10
	24.0	32.8	830		54	8.4	CXC624F3		CXCT624F3	24.3	11
	30.0	39.6	1005		54	8.4	CXC630F3		CXCT630F3	26.5	12
High Density Incoloy® Sheath	6.0	17.9	455		60	9.3	CXI306F3	TMI-3H-306	CXIT306F3	15.4	7
	9.0	25.8	655		55	8.5	CXI309F3	TMI-3H-309	CXIT309F3	15.4	7
	12.0	32.7	830		54	8.4	CXI312F3	TMI-3H-312	CXIT312F3	17.6	8
	15.0	39.6	1005		54	8.4	CXI315F3	TMI-3H-315	CXIT315F3	17.6	8
	18.0	47.4	1205		53	8.2	CXI318F3	TMI-3H-318	CXIT318F3	19.8	9
	18.0	25.8	605		55	8.5	CXI618F3	–	CXIT618F3	22.0	10
	24.0	32.7	830		54	8.4	CXI624F3		CXIT624F3	24.3	11
	30.0	39.6	1005		54	8.4	CXI630F3		CXIT630F3	26.5	12
Medium Density Incoloy® Sheath	3.0	17.9	455		30	4.6	CXF303F3	TMI-3-303	CXFT303F3	15.4	7
	4.5	25.8	655		27	4.2	CXF304F3	TMI-3-304	CXFT304F3	15.4	7
	6.0	32.7	830		27	4.2	CXF306F3	TMI-3-306	CXFT306F3	17.6	8
	7.5	39.6	1005		27	4.2	CXF307F3	TMI-3-307	CXFT307F3	19.8	9
	9.0	47.4	1205		26	4.1	CXF309F3	TMI-3-309	CXFT309F3	19.8	9
Low Density	3.0	32.7	830		14	2.1	CXF303F332	TMI-3L-303	CXFT303F332	17.6	8
Incoloy®	4.5	39.6	1005		17	2.5	CXF304F339	TMI-3L-304	CXFT304F339	17.6	8
Sheath	6.0	47.4	1205		18	2.7	CXF306F347	TMI-3L-306	CXFT306F347	19.8	9

	kW	Immersion Length ‘B’		Standard Voltages 208, 240, 416,	Watt Density		Without Thermostat	With Thermostat 50°F to 250°F (10°C to 120°C)	Net Weight
		in	mm	480, 600	W/in²	W/cm²	Catalog No.	Catalog No.	lbs	kg
High Density Copper Sheath	12.0	17.9	455	1 or 3 Phase	60	8.4	CXC612F4	CXCT612F4	26.5	12
	15.0	21.9	555		57	8.8	CXC615F4	CXCT615F4	28.7	13
	18.0	25.8	655		55	8.5	CXC618F4	CXCT618F4	28.7	13
	24.0	32.7	830		54	8.4	CXC624F4	CXCT624F4	30.9	14
	30.0	39.6	1005		54	8.4	CXC630F4	CXCT630F4	33.1	15
	18.0	17.9	455		60	9.3	CXC918F4	CXCT918F4	37.5	17
	27.0	25.8	655		55	8.5	CXC927F4	CXCT927F4	39.7	18
	36.0	32.7	830		54	8.4	CXC936F4	CXCT936F4	39.7	18
	45.0	39.6	1005		54	8.4	CXC945F4	CXCT945F4	44.1	20
High Density Incoloy® Sheath	12.0	17.9	455		60	8.4	CXI612F4	CXIT612F4	26.5	12
	15.0	21.9	555		57	8.8	CXI615F4	CXIT615F4	28.7	13
	18.0	25.8	655		55	8.5	CXI618F4	CXIT618F4	28.7	13
	24.0	32.7	830		54	8.4	CXI624F4	CXIT624F4	30.9	14
	30.0	39.6	1005		54	8.4	CXI630F4	CXIT630F4	33.1	15
	18.0	17.9	455		60	9.3	CXI918F4	CXIT918F4	37.5	17
	27.0	25.8	655		55	8.5	CXI927F4	CXIT927F4	39.7	18
	36.0	32.7	830		54	8.4	CXI936F4	CXIT936F4	39.7	18
	45.0	39.6	1005		54	8.4	CXI945F4	CXIT945F4	44.1	20
Medium Density Incoloy® Sheath	6.0	17.9	455		30	4.6	CXF606F4	CXFT606F4	28.7	13
	9.0	25.8	655		27	4.2	CXF609F4	CXFT609F4	30.9	14
	12.0	32.7	830		27	4.2	CXF612F4	CXFT612F4	33.1	15
	9.0	17.9	455		30	4.6	CXF909F4	CXFT909F4	37.5	17
	13.5	25.8	655		27	4.2	CXF913F4	CXFT913F4	39.7	18
	18.0	32.7	830		27	4.2	CXF918F4	CXFT918F4	41.9	19
Low Density Incoloy® Sheath	6.0	32.7	830		14	2.1	CXF606F432	CXFT606F432	30.9	14
Low Density Incoloy® Sheath	9.0	32.7	830		14	2.1	CXF909F432	CXFT909F432	39.7	18

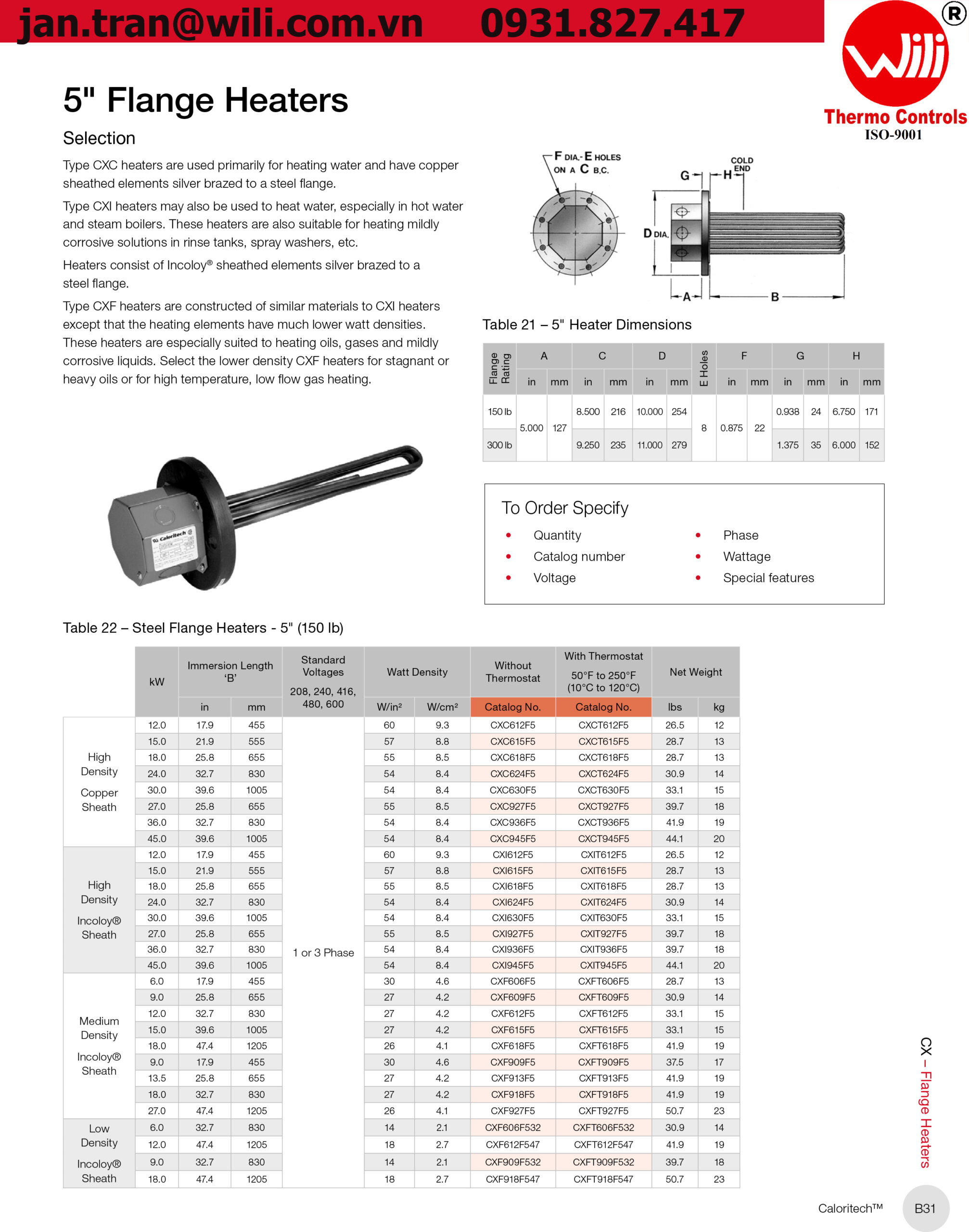

	kW	Immersion Length ‘B’		Standard Voltages 208, 240, 416,	Watt Density		Without Thermostat	With Thermostat 50°F to 250°F (10°C to 120°C)	Net Weight
		in	mm	480, 600	W/in²	W/cm²	Catalog No.	Catalog No.	lbs	kg
High Density Copper Sheath	12.0	17.9	455	1 or 3 Phase	60	9.3	CXC612F5	CXCT612F5	26.5	12
	15.0	21.9	555		57	8.8	CXC615F5	CXCT615F5	28.7	13
	18.0	25.8	655		55	8.5	CXC618F5	CXCT618F5	28.7	13
	24.0	32.7	830		54	8.4	CXC624F5	CXCT624F5	30.9	14
	30.0	39.6	1005		54	8.4	CXC630F5	CXCT630F5	33.1	15
	27.0	25.8	655		55	8.5	CXC927F5	CXCT927F5	39.7	18
	36.0	32.7	830		54	8.4	CXC936F5	CXCT936F5	41.9	19
	45.0	39.6	1005		54	8.4	CXC945F5	CXCT945F5	44.1	20
High Density Incoloy® Sheath	12.0	17.9	455		60	9.3	CXI612F5	CXIT612F5	26.5	12
	15.0	21.9	555		57	8.8	CXI615F5	CXIT615F5	28.7	13
	18.0	25.8	655		55	8.5	CXI618F5	CXIT618F5	28.7	13
	24.0	32.7	830		54	8.4	CXI624F5	CXIT624F5	30.9	14
	30.0	39.6	1005		54	8.4	CXI630F5	CXIT630F5	33.1	15
	27.0	25.8	655		55	8.5	CXI927F5	CXIT927F5	39.7	18
	36.0	32.7	830		54	8.4	CXI936F5	CXIT936F5	39.7	18
	45.0	39.6	1005		54	8.4	CXI945F5	CXIT945F5	44.1	20
Medium Density Incoloy® Sheath	6.0	17.9	455		30	4.6	CXF606F5	CXFT606F5	28.7	13
	9.0	25.8	655		27	4.2	CXF609F5	CXFT609F5	30.9	14
	12.0	32.7	830		27	4.2	CXF612F5	CXFT612F5	33.1	15
	15.0	39.6	1005		27	4.2	CXF615F5	CXFT615F5	33.1	15
	18.0	47.4	1205		26	4.1	CXF618F5	CXFT618F5	41.9	19
	9.0	17.9	455		30	4.6	CXF909F5	CXFT909F5	37.5	17
	13.5	25.8	655		27	4.2	CXF913F5	CXFT913F5	41.9	19
	18.0	32.7	830		27	4.2	CXF918F5	CXFT918F5	41.9	19
	27.0	47.4	1205		26	4.1	CXF927F5	CXFT927F5	50.7	23
Low	6.0	32.7	830		14	2.1	CXF606F532	CXFT606F532	30.9	14
Density	12.0	47.4	1205		18	2.7	CXF612F547	CXFT612F547	41.9	19
Incoloy®	9.0	32.7	830		14	2.1	CXF909F532	CXFT909F532	39.7	18
Sheath	18.0	47.4	1205		18	2.7	CXF918F547	CXFT918F547	50.7	23

	kW	Immersion Length ‘B’		Standard Voltages				Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)	Net Weight
	kW	Immersion Length ‘B’		208, 240		480, 600		Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)	Net Weight
		in	mm	1Ø	3Ø	1Ø	3Ø	W/in²	W/cm²	Catalog No.	Part No.	Catalog No.	lbs	kg
High Density Copper Sheath	36.0	25.8	655					55	8.5	CXC1236F6	TM-6-1236	CXCT1236F6	44.1	20
	48.0	32.7	830	—				54	8.4	CXC1248F6	TM-6-1248	CXCT1248F6	48.5	22
	60.0	39.6	1005	—				54	8.4	CXC1260F6	TM-6-1260	CXCT1260F6	52.9	24
	72.0	47.4	1205	—				53	8.2	CXC1272F6	TM-6-1272	CXCT1272F6	57.3	26
	45.0	25.8	655	—				55	8.5	CXC1545F6	–	CXCT1545F6	50.7	23
	60.0	32.7	830					54	8.4	CXC1560F6		CXCT1560F6	55.1	25
	75.0	39.5	1005					54	8.4	CXC1575F6		CXCT1575F6	61.7	28
	90.0	47.4	1205					53	8.2	CXC1590F6		CXCT1590F6	68.3	31
	90.0	39.6	1005					54	8.4	CXC1890F6		CXCT1890F6	70.5	32
	36.0	25.8	655					55	8.5	CXI1236F6	TMI-6-1236	CXIT1236F6	44.1	20
	48.0	32.7	830	—				54	8.4	CXI1248F6	–	CXIT1248F6	48.5	22
	60.0	39.6	1005	—				54	8.4	CXI1260F6		CXIT1260F6	52.9	24
High	72.0	47.4	1205	—				53	8.2	CXI1272F6		CXIT1272F6	57.3	26
Density	45.0	25.8	655	—				55	8.5	CXI1545F6		CXIT1545F6	50.7	23
Incoloy®	60.0	32.7	830					54	8.4	CXI1560F6		CXIT1560F6	55.1	25
Sheath	75.0	39.5	1005					54	8.4	CXI1575F6		CXIT1575F6	61.7	28
	90.0	47.4	1205					53	8.2	CXI1590F6		CXIT1590F6	68.3	31
	90.0	39.6	1005					54	8.4	CXI1890F6		CXIT1890F6	70.5	32
	120.0	47.4	1205	—	—	—		70	10.9	CXI15120F6		CXIT15120F6	72.8	33
	144.0	47.4	1205			—		70	10.9	CXI18144F6		CXIT18144F6	83.8	38
Medium Density Incoloy® Sheath	18.0	25.8	655					27	4.2	CXF1218F6	TMI-6H-1218	CXFT1218F6	46.3	21
	24.0	32.7	830					27	4.2	CXF1221F6	TMI-6H-1224	CXFT1221F6	50.7	23
	30.0	39.6	1005					27	4.2	CXF1230F6	TMI-6H-1230	CXFT1230F6	55.1	25
	36.0	47.4	1205					26	4.1	CXF1236F6	TMI-6H-1236	CXFT1236F6	59.5	27
	48.0	61.2	1555					26	4.1	CXF1248F6	–	CXFT1248F6	70.5	32
	22.5	25.8	655					27	4.2	CXF1522F6		CXFT1522F6	52.9	24
	30.0	32.7	830							CXF1530F6		CXFT1530F6	57.3	26
	37.5	39.6	1005							CXF1537F6		CXFT1537F6	63.9	29
	45.0	47.4	1205	—				26	4.1	CXF1545F6		CXFT1545F6	70.5	32
	60.0	61.2	1555	—				26	4.1	CXF1560F6		CXFT1560F6	83.8	38
	12.0	32.7	830					14	2.1	CXF1212F6	–	CXFT1212F6	48.5	22
Low	18.0	39.6	1005					16	2.5	CXF1218F639	TMI-6L-1218	CXFT1218F639	57.3	26
Density	24.0	47.4	1205					18	2.7	CXF1224F647	–	CXFT1224F647	66.1	30
Incoloy®	15.0	32.7	830					14	2.1	CXF1515F6		CXFT1515F6	52.9	24
Sheath	22.5	39.6	1005					16	2.5	CXF1522F639		CXFT1522F639	63.9	29
	30.0	47.4	1205					18	2.7	CXF1530F647		CXFT1530F647	77.2	35

	kW	Immersion Length ‘B’		Standard Voltages				Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)	Net Weight
		Immersion Length ‘B’		208, 240		480, 600		Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)	Net Weight
		in	mm	1Ø	3Ø	1Ø	3Ø	W/in²	W/cm²	Catalog No.	Part No.	Catalog No.	lbs	kg
High Density Copper Sheath	54.0	25.6	54	—				55	8.5	CXC1854F8	TM-8-1850	CXCT1854F8	49.4	36
	72.0	32.5	72					54	8.4	CXC1872F8	TM-8-1872	CXCT1872F8	83.8	38
	90.0	39.4	90					54	8.4	CXC1890F8	–	CXCT1890F8	90.4	41
	108.0	47.2	108					53	8.2	CXC18108F8	TM-8-18100	CXCT18108F8	99.2	45
	81.0	25.6	81					55	8.5	CXC2781F8	–	CXCT2781F8	90.4	41
	108.0	32.5	108		—			54	8.4	CXC27108F8		CXCT27108F8	101.4	46
	135.0	39.4	135		—	—		54	8.4	CXC27135F8		CXCT27135F8	110.2	50
	162.0	47.2	162		—	—		53	8.2	CXC27162F8		CXCT27162F8	125.7	57
	54.0	25.6	650	—				55	8.5	CXI1854F8	TMI-8-1850	CXIT1854F8	79.4	36
	72.0	32.5	825					54	8.4	CXI1872F8	–	CXIT1872F8	83.8	38
	90.0	39.4	1000					54	8.4	CXI1890F8		CXIT1890F8	90.4	41
	108.0	47.2	1200					53	8.2	CXI18108F8		CXIT18108F8	99.2	45
	81.0	25.6	650					55	8.5	CXI2781F8		CXIT2781F8	90.4	41
High	108.0	32.5	825		—			54	8.4	CXI27108F8		CXIT27108F8	101.4	46
Density	135.0	39.4	1000		—	—		54	8.4	CXI2735F8		CXIT2735F8	110.2	50
Incoloy®	162.0	47.2	1200		—	—		53	8.2	CXI2716F8		CXIT2716F8	125.7	57
Sheath	120.0				—	—		70	10.9	CXI15120F8		CXIT15120F8	92.6	42
	144.0									CXI18144F8		CXIT18144F8	99.2	45
	168.0									CXI21168F8		CXIT21168F8	110.2	50
	192.0									CXI24192F8		CXIT24192F8	116.8	53
	216.0									CXI27216F8		CXIT27216F8	125.7	57
	240.0									CXI30240F8		CXIT30240F8	134.5	61
Medium Density Incoloy® Sheath	36.0	32.5	825					27	4.2	CXF1836F8	TMI-8H-1830	CXFT1836F8	83.8	38
	54.0	47.2	1200	—				26	4.1	CXF1854F8	TMI-8H-1850	CXFT1854F8	101.4	46
	63.0	47.2	1200	—				26	4.1	CXF2163F8	–	CXFT2163F8	110.2	50
	72.0	47.2	1200	—				26	4.1	CXF2472F8	–	CXFT2472F8	116.8	53
	81.0	47.2	1200	—				26	4.1	CXF2781F8	–	CXFT2781F8	125.7	57
	90.0	47.2	1200	—				26	4.1	CXF3090F8	–	CXFT3090F8	134.5	61
	27.0	39.4	1000					16	2.5	CXF1827F8	–	CXFT1827F8	90.4	41
Low	31.5	39.4	1000					16	2.5	CXF2131F8	TMO-8-1830	CXFT2131F8	97.0	44
Density	36.0	39.4	1000					16	2.5	CXF2436F8	TMO-8-1840	CXFT2436F8	101.4	46
	36.0	47.2	1200					17	2.7	CXF1836F847	TMO-8L-2435	CXFT1836F847	101.4	46
Incoloy®	40.5	39.4	1000	—				16	2.5	CXF2740F8	–	CXFT2740F8	110.2	50
Sheath	45.0	39.4	1000					16	2.5	CXF3045F8	–	CXFT3045F8	116.8	53
	54.0	47.2	1200					17	2.7	CXF2754F8	TMO-8L-2450	CXFT2754F8	125.7	57

	kW	Immersion Length ‘B’		Standard Voltages				Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)		Net Weight
	kW	Immersion Length ‘B’		208, 240		480, 600		Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)		Net Weight
		in	mm	1Ø	3Ø	1Ø	3Ø	W/in²	W/cm²	Catalog No.	Part No.	Catalog No.	Part No.	lbs	kg
High Density Copper Sheath	180	39.4	1000	—	—	—		63	9.8	CXC36180F10	—	—	—	152.1	69
	216	47.2	1200					60	9.3	CXC36216F10				165.4	75
	252	47.2	1200					60	9.3	CXC42252F10				187.4	85
	180	39.4	1000		—	—		63	9.8	CXI36180F10				152.1	69
	216	47.2	1200					60	9.3	CXI36216F10				165.4	75
High Density	252	47.2	1200					60	9.3	CXI42252F10				187.4	85
Incoloy® Sheath	288	47.2	1200					80	12.3	CXI36288F10				165.4	75
	336	47.2	1200		—	—		80	12.3	CXI42336F10				187.4	85
	384				—	—		80	12.3	CXI48384F10				205.0	93
Medium Density Incoloy® Sheath	108	47.2	1200		—			30	4.6	CXF36108F10				165.4	75
	126					—				CXF42126F10				187.4	85
	144					—				CXF48144F10				205.0	93
Low Density	72							20	3.1	CXF3672F10				165.4	75
Incoloy®	84	47.2	1200							CXF4284F10				187.4	85
Sheath	96									CXF4896F10				205.0	93

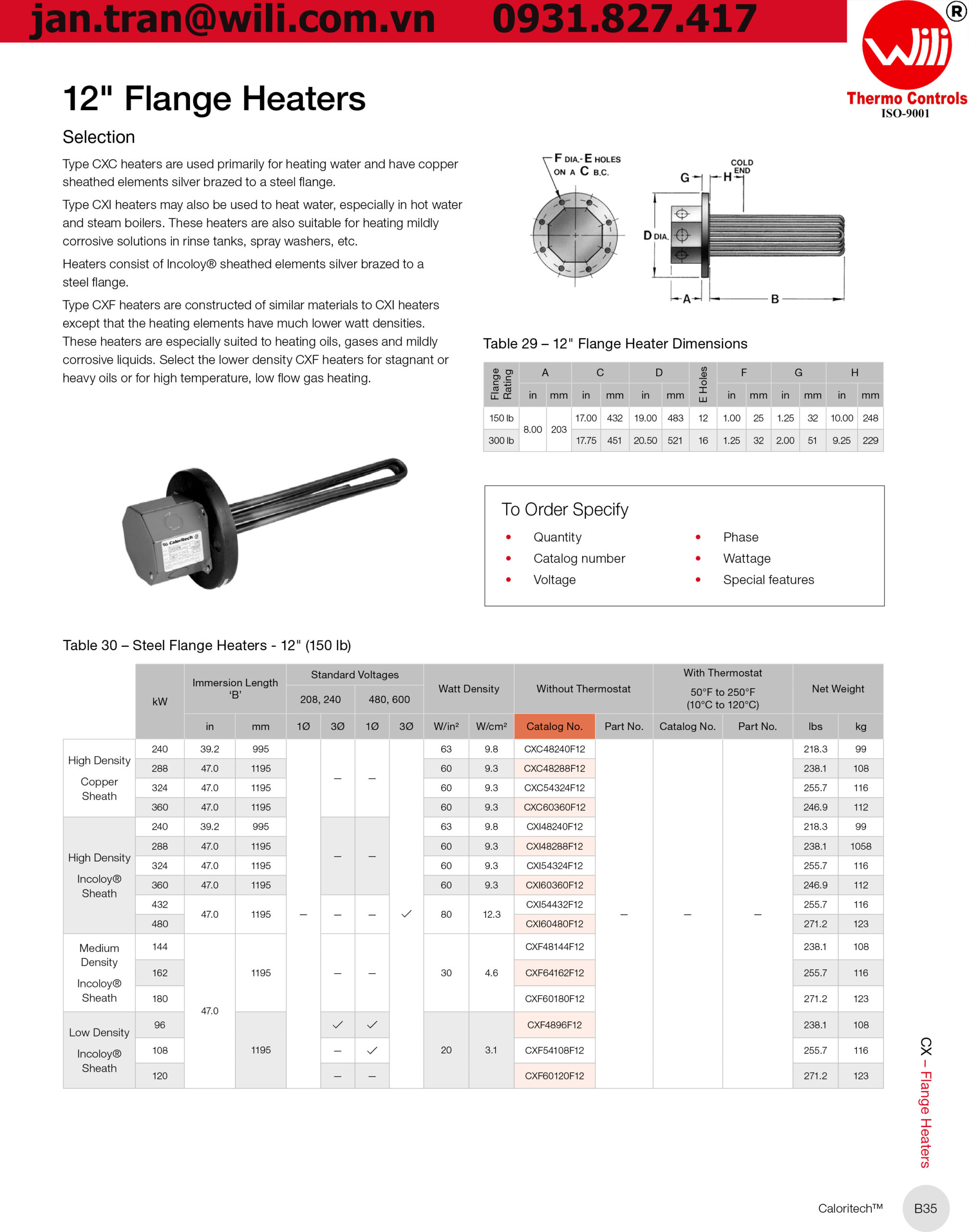

	kW	Immersion Length ‘B’		Standard Voltages				Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)		Net Weight
	kW	Immersion Length ‘B’		208, 240		480, 600		Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)		Net Weight
		in	mm	1Ø	3Ø	1Ø	3Ø	W/in²	W/cm²	Catalog No.	Part No.	Catalog No.	Part No.	lbs	kg
High Density Copper Sheath	240	39.2	995	—	—	—		63	9.8	CXC48240F12	—	—	—	218.3	99
	288	47.0	1195					60	9.3	CXC48288F12				238.1	108
	324	47.0	1195					60	9.3	CXC54324F12				255.7	116
	360	47.0	1195					60	9.3	CXC60360F12				246.9	112
	240	39.2	995		—	—		63	9.8	CXI48240F12				218.3	99
	288	47.0	1195					60	9.3	CXI48288F12				238.1	1058
High Density	324	47.0	1195					60	9.3	CXI54324F12				255.7	116
Incoloy® Sheath	360	47.0	1195					60	9.3	CXI60360F12				246.9	112
	432	47.0	1195		—	—		80	12.3	CXI54432F12				255.7	116
	480	47.0	1195		—	—		80	12.3	CXI60480F12				271.2	123
Medium Density Incoloy® Sheath	144	47.0	1195		—	—		30	4.6	CXF48144F12				238.1	108
	162									CXF64162F12				255.7	116
	180									CXF60180F12				271.2	123
Low Density	96		1195					20	3.1	CXF4896F12				238.1	108
Incoloy®	108				—					CXF54108F12				255.7	116
Sheath	120				—	—				CXF60120F12				271.2	123

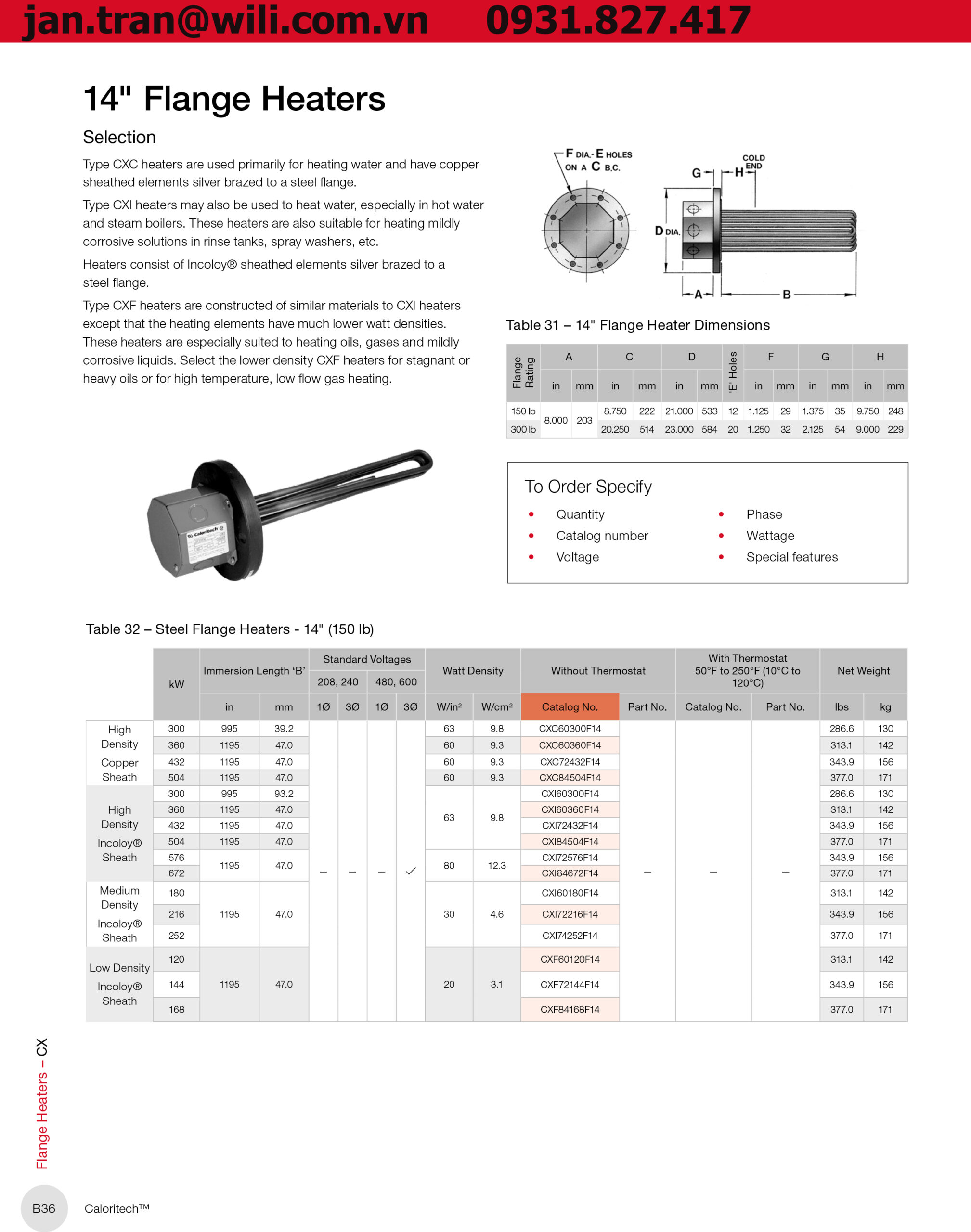

	kW	Immersion Length ‘B’		Standard Voltages				Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)		Net Weight
	kW	Immersion Length ‘B’		208, 240		480, 600		Watt Density		Without Thermostat		With Thermostat 50°F to 250°F (10°C to 120°C)		Net Weight
		in	mm	1Ø	3Ø	1Ø	3Ø	W/in²	W/cm²	Catalog No.	Part No.	Catalog No.	Part No.	lbs	kg
High Density Copper Sheath	300	995	39.2	—	—	—		63	9.8	CXC60300F14	—	—	—	286.6	130
	360	1195	47.0					60	9.3	CXC60360F14				313.1	142
	432	1195	47.0					60	9.3	CXC72432F14				343.9	156
	504	1195	47.0					60	9.3	CXC84504F14				377.0	171
High Density Incoloy® Sheath	300	995	93.2					63	9.8	CXI60300F14				286.6	130
	360	1195	47.0							CXI60360F14				313.1	142
	432	1195	47.0							CXI72432F14				343.9	156
	504	1195	47.0							CXI84504F14				377.0	171
	576	1195	47.0					80	12.3	CXI72576F14				343.9	156
	672	1195	47.0					80	12.3	CXI84672F14				377.0	171
Medium Density Incoloy® Sheath	180	1195	47.0					30	4.6	CXI60180F14				313.1	142
	216									CXI72216F14				343.9	156
	252									CXI74252F14				377.0	171
Low Density Incoloy® Sheath	120							20	3.1	CXF60120F14				313.1	142
	144	1195	47.0							CXF72144F14				343.9	156
	168									CXF84168F14				377.0	171
